GM LS SERIES COMPLETE MODULAR INTAKE MANIFOLDS
Available from Aeroflow Performance
The Aeroflow Performance GM LS modular intake manifolds allow the end user to customise their intake manifold depending on each individual application.
They are offered as either a hi rise manifold where bonnet modifications will be required with the long runner design allowing for high rpm horsepower with big cube engines for a serious drag racer, and a low-rise design manifold.
The low-rise option allows it to fit under a stock bonnet in most street car applications, with the short intake runners with tapered top designed to increase air velocity and more evenly distribute airflow to all eight cylinders, improving performance and throttle response.

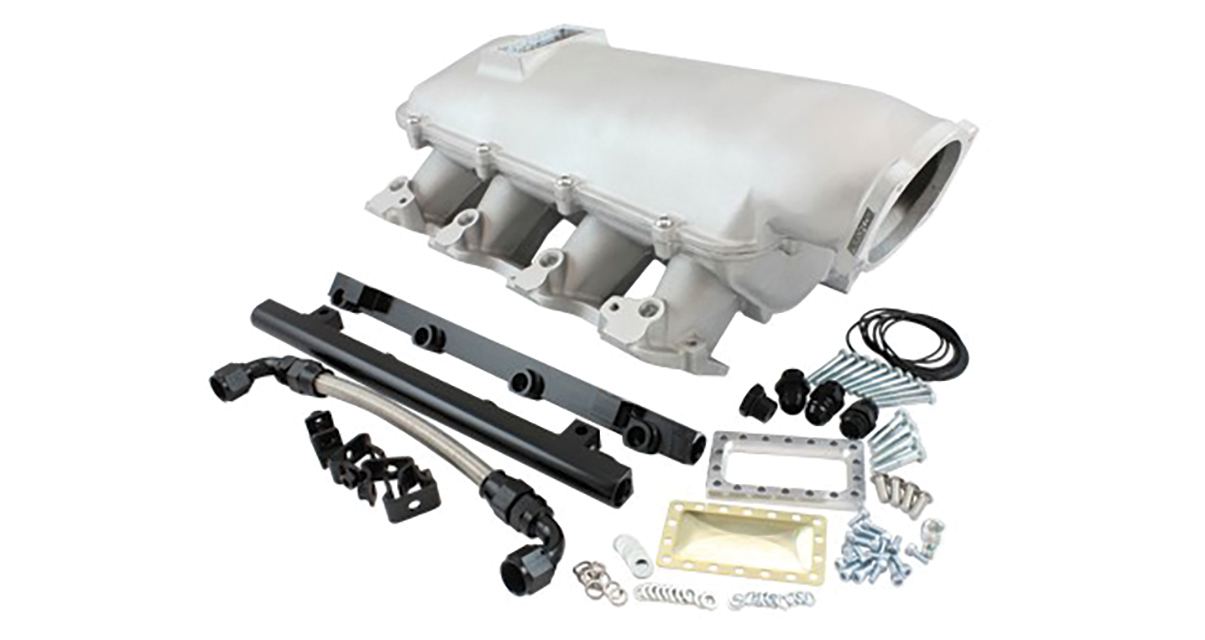

The modular design is made up of the bottom base which bolts to the cylinder heads and the top plate which bolts to the base with an O-ring to seal both components.
Each base will fit either a cathedral port or rectangle port cylinder heads.
With a choice of non-EFI with no injector bosses or EFI with 16 injector bosses (eight undrilled) complete with fuel rails and cross over, it is designed to suit 14mm short length (33mm) fuel injectors.
All bases have a provision for a LS style map sensor on the rear along with one x 3/8” NPT and one x 1/8” NPT ports with bungs.
The top plate features a short throttle body snout to accept up to 105mm 4-bolt GM LS throttle body and a burst panel is welded on the top plate which releases pressure in the event of a backfire.
For more information, visit www.aeroflowperformance.com
